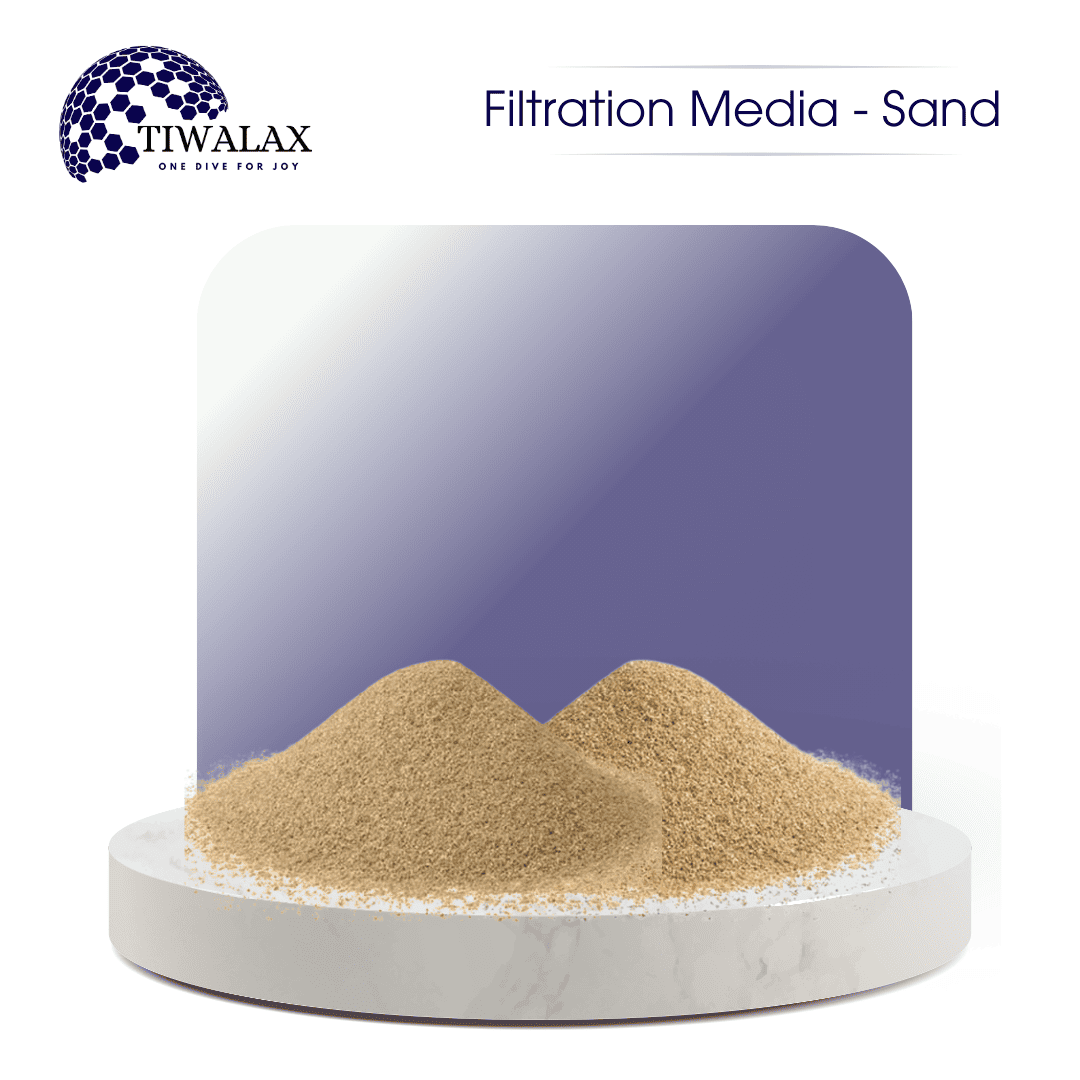

Filtration media - sand

Filtration Media - Sand is one of the most common and traditional types of media used in sand filter systems for swimming pools. Sand filters use specially graded sand as the primary filtering medium to trap dirt, debris, and other particles from pool water, ensuring that the water stays clean and clear. Sand is known for being a durable, cost-effective, and easy-to-maintain filtration medium for residential and commercial pools. Key Features of Sand Filtration Media: Cost-Effective: Sand is one of the most affordable pool filtration media options. It's widely available and less expensive than alternatives like diatomaceous earth (DE) or cartridge filters, making it a popular choice for budget-conscious pool owners. Durability: Sand is highly durable and long-lasting. When properly maintained, it can remain effective for several years before needing to be replaced, which reduces overall pool maintenance costs. Simplicity of Use: Sand filters are simple to use and maintain. The sand works by trapping particles and debris as the pool water passes through the filter. Backwashing is the primary maintenance task, making it user-friendly and straightforward. Natural Filtration Medium: Sand is a natural, non-toxic material, which makes it a safe and eco-friendly choice for pool filtration. Particle Filtration: Sand filters are effective at capturing larger particles, such as dirt, leaves, insects, and gravel. However, they are not as efficient at filtering out smaller particles compared to other media, like cartridge filters or DE. Wide Availability: Sand is easy to find and replace. Most pool stores carry the specialized pool filter sand, which is different from regular construction sand and is designed for maximum filtration.

Benefits of Sand Filtration Media:

  1. Affordable and Low Maintenance:
    Sand is inexpensive and needs to be replaced far less frequently than other filtration media, such as DE or cartridges, making it a budget-friendly choice for pool owners. Regular backwashing is usually enough to keep the sand functioning properly.

  2. Effective for Larger Particles:
    Sand filters are highly effective at filtering out larger debris like dirt, leaves, and other visible contaminants from the water. They provide adequate filtration for most residential pools.

  3. Easy to Operate:
    Sand filters are generally easy to set up, use, and maintain. They require minimal technical knowledge, making them a great choice for DIY pool owners.

  4. No Need for Additional Chemicals:
    Unlike DE filters, which sometimes require additional chemicals to coat the filter, sand filters only require periodic cleaning, which reduces the need for extra maintenance products.

  5. Good for Residential Pools:
    Sand filtration systems are well-suited for residential swimming pools with standard filtration needs. They provide reliable performance in filtering pool water, making them ideal for most homeowners.

Applications of Sand Filtration Media:

  • Residential Pools:
    Sand filtration media is perfect for homeowners who want a cost-effective and reliable filtration system to keep their pool water clean and clear.

  • Above-Ground Pools:
    Sand filters are often used with above-ground pools due to their simple operation, ease of maintenance, and ability to handle the filtration needs of smaller pool systems.

  • Commercial Pools:
    While sand filtration can be used for larger commercial pools, it may not be as effective for pools with high bather loads or those requiring more precise filtration (e.g., pools in fitness centers or water parks). In such cases, DE filters or cartridge systems may be preferred.

  • Hot Tubs and Spas:
    Sand filters can also be used for smaller filtration systems in hot tubs and spas, providing effective filtration for smaller volumes of water.

How Sand Filtration Media Works:

  1. Water Intake:
    Water from the pool is pulled into the filtration system by the pool pump.

  2. Filtration Process:
    The water flows through the sand bed inside the filter tank. As water passes through the sand, debris and particles are trapped between the grains of sand. The clean water then continues to flow out of the filter and returns to the pool.

  3. Backwashing:
    Over time, debris accumulates on the surface of the sand, reducing the filter's effectiveness. Backwashing is a process where the flow of water is reversed, flushing the trapped debris out of the sand filter. The sand is then refreshed, and the filter continues to operate effectively.

  4. Water Return:
    Once the water has passed through the sand filter, it is pumped back into the pool, ensuring that the water is as clean and clear as possible.

Maintenance of Sand Filtration Media:

  • Backwashing:
    Periodically, the filter needs to be backwashed to remove the trapped debris and dirt. The frequency of backwashing depends on pool usage, the amount of debris in the pool, and how often the pool is cleaned. Typically, backwashing should be done when the filter's pressure gauge indicates a 10-15 psi increase from the normal operating pressure.

  • Replacing the Sand:
    While sand is long-lasting, it will eventually need to be replaced after several years (typically 3-5 years). Over time, the sand particles can become smooth and less effective at trapping debris. If you notice that the pool water is still cloudy or that the filter isn’t operating as effectively, it might be time to replace the sand.

  • Cleaning the Sand:
    Some pool owners choose to clean their sand by using a sand filter cleaner to remove oils and debris build-up. This can extend the lifespan of the sand and keep the filter functioning optimally.

Advantages of Sand Filtration Media Over Other Media:

  1. Low Initial and Replacement Costs:
    Sand is typically cheaper than other types of filter media, like DE or cartridge filters, making it a more budget-friendly option.

  2. Simpler Maintenance:
    Sand filters are easier to maintain than DE filters, which require additional steps like recharging the filter media, and they don’t need the frequent cleaning that cartridge filters require.

  3. Longer Lifespan:
    Sand lasts for 3-5 years before needing replacement, which is typically longer than DE and cartridge filters, making it more cost-effective in the long run.

  4. Efficient for Larger Debris:
    Sand filters do an excellent job of capturing larger particles like leaves, dirt, and debris that can cloud pool water, which makes them great for residential pools.

Disadvantages of Sand Filtration Media:

  1. Less Efficient for Smaller Particles:
    Sand filters are not as effective as cartridge or DE filters at filtering out very fine particles (like algae spores or bacteria). If you're looking for the highest level of water clarity and filtration, other systems may be more effective.

  2. Backwashing Required:
    Sand filters require periodic backwashing, which uses water to clean the filter media. This can result in water waste, which is something to consider if you’re trying to conserve water.

Filtration Media - Sand is a reliable and cost-effective option for pool filtration, making it a favorite among pool owners. It provides good filtration for larger particles and is easy to maintain with simple backwashing. While it may not capture smaller particles as efficiently as other media, its long lifespan and low cost make it a popular choice for most residential pools.
